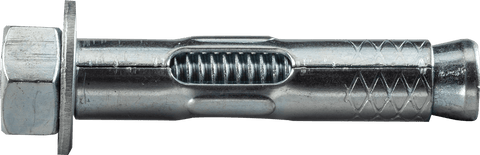

AEROSMITH SAH584140 Carbon Steel Sleeve Anchor 5/8 in. x 4-1/4 in. Hex Head

The Aerosmith Sleeve Anchor Carbon Steel is an all-steel, pre-assembled heavy-duty mechanical anchor designed for fastening into a variety of solid base materials, including concrete and masonry. The SAH584140 is a 5/8 in. x 4-1/4 in. hex-head configuration with zinc-plated carbon-steel components. Its pre-assembled design allows the anchor to be installed directly through the fixture, and the anchor diameter matches the required drill-hole diameter for straightforward installation.

Applications

Light- to medium-duty signage
Electrical boxes
Shelving
Junction boxes
Door frames
Window frames

Features & Benefits

All-steel component design
Pre-assembled anchor for quick installation
Heavy-duty mechanical anchoring design
Can be used in a variety of solid base materials
Anchor size is the same as the required hole size
Hex-head configuration for wrench or socket installation
Zinc-plated carbon-steel construction
Aerosmith Sleeve Anchors are also available in acorn-nut and flat-head styles

Base Materials

Concrete
Grout-filled masonry
Block — expansion must occur in the solid portion
Brick
Stone

Anchor Component Materials

Body: Zinc-plated carbon steel
Nut & Washer: Carbon steel
Expansion Sleeve: Carbon steel

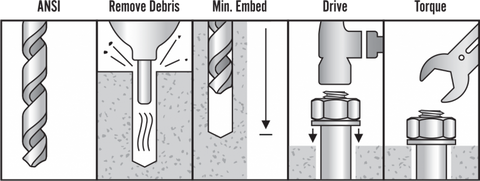

Installation

Drill a 5/8 in. diameter hole in the base material.
Insert the pre-assembled anchor through the fixture and into the drilled hole.
Seat the anchor so the washer and nut are positioned against the fixture.
Tighten the hex nut to the required torque; the manufacturer lists a maximum torque of 50 ft-lb for SAH584140.

Specifications

Part ID: SAH584140
Product: Carbon Steel Sleeve Anchor
Head Style: Hex Head
Size: 5/8 in. x 4-1/4 in.
Length: 4-1/4 in.
Anchor Diameter: 5/8 in.
ANSI Drill Diameter: 5/8 in.
Minimum Embedment Depth: 2 in.
Maximum Torque: 50 ft-lb
Box Quantity: 10
Carton Quantity: 60

Hex-Head Anchor Dimensions

ANSI Carbide Drill Bit: 5/8 in.
Fixture Clearance Hole: 11/16 in.
Inner Bolt Size: 1/2-13
Nut Height: 7/16 in.
Wrench / Socket Size: 3/4 in.
Washer O.D.: 1-3/8 in.

Published Performance Data

For a 5/8 in. sleeve anchor installed at 2 in. minimum embedment in 4,000 psi normal-weight, uncracked concrete, Aerosmith publishes an ultimate tension capacity of 4,560 lb and an ultimate shear capacity of 7,154 lb. Using the manufacturer's minimum safety factor of 4.0, the corresponding published allowable capacities are 1,140 lb tension and 1,788 lb shear. The listed carbon-sleeve-anchor torque for this configuration is 50 ft-lb.

Grout-Filled Block (CMU) Performance

For a 5/8 in. sleeve anchor at 2 in. embedment in grout-filled CMU, Aerosmith publishes ultimate loads of 1,600 lb tension and 2,200 lb shear at 2,000 psi CMU, and 1,946 lb tension and 2,200 lb shear at 3,000 psi CMU. Manufacturer notes require appropriate safety factors and recommend job-site testing where needed to verify base-material and anchor performance.

Technical Notes

Published normal-weight concrete values are for anchors installed in uncracked concrete.
The concrete or CMU must meet the specified minimum compressive strength at the time of installation.
Ultimate concrete load capacities must be reduced by a minimum safety factor of 4.0 to determine allowable loads.
A safety factor of 10 or higher may be necessary depending on the application, including life-safety or overhead conditions.
Always evaluate actual base material, edge distance, spacing, fixture conditions and applicable code requirements for the installation.

Aerosmith Sleeve Anchor Performance Data PDF
