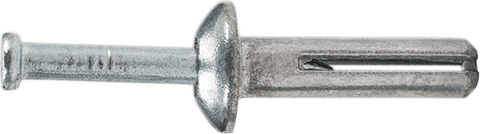

AEROSMITH ZNMH142 Zinc Nail-In Anchor 1/4 in. x 2 in. Mushroom Head

The Aerosmith Zinc Nail-In Anchor is a light-duty, tamper-proof mechanical anchor for fastening fixtures to concrete, brick, block and stone. This 1/4 in. x 2 in. mushroom-head model uses a zinc Zamac alloy anchor body with an AISI 1018 carbon-steel nail. Installation is fast and requires no special setting tool.

Applications

Drywall track
Light-duty signage
Brick ties
Parapet flashing

Features & Benefits

Fast, straightforward installation
Works in multiple masonry base materials
Flush appearance when properly set
Zinc-alloy anchor body
No special installation tools required
Aerosmith also offers stainless-steel-nail and removable versions within the Zinc Nail-In family

Base Materials

Concrete
Brick
Block
Stone

Materials

Anchor Body: Zinc Zamac alloy
Nail: AISI 1018 carbon steel

Installation

Drill a hole matching the anchor body diameter.
Remove drilling debris and position the fixture.
Tap the anchor into the pre-drilled hole until the body is flush.
Hammer the nail into the anchor body to set the anchor.

Specifications

Part ID: ZNMH142
Product: Zinc Nail-In, 1/4 in. x 2 in., Mushroom Head
Overall Length: 2 in.
Overall Diameter: 1/4 in.
ANSI Drill Diameter: 1/4 in.
Minimum Embedment: 1-1/2 in.
Box Quantity: 100
Carton Quantity: 500

Performance Data

Aerosmith publishes ultimate and allowable load data for 1/4 in. Zinc Nail-in Anchors in normal-weight concrete. The published table shows tested embedment depths through 1-1/4 in.; this SKU's product listing specifies a minimum embedment of 1-1/2 in. Allowable values in the manufacturer data use a safety factor of 4.0.

Technical Notes

Manufacturer load data is based on anchors installed in normal-weight concrete.
Concrete must meet the stated minimum compressive strength at the time of installation.
Linear interpolation may be used for intermediate concrete compressive strengths.
Do not use Zinc Nail-In Anchors for overhead or life-safety applications.

Aerosmith Zinc Nail-In Performance Data PDF
