Milwaukee 2564-22 M12 FUEL™ 3/8" Right Angle Impact Wrench Kit

The M12 FUEL™ 3/8" Right Angle Impact Wrench w/ Friction Ring is the industry's most powerful right angle impact wrench. With up to 220 ft-lbs. of nut-busting torque, removing stubborn bolts and fasteners are no longer an issue. Along with power, the tool offers users maximum access and ultimate control for hard to reach applications. With a head profile of only 2.8", this tool easily fits into tight spaces making users more productive while decreases their need for socket extensions often used with pistol-grip impact tools. 4-Mode Drive Control will allow unmatched control in various fastening and bolt removal applications. Modes 1-3 provide RPM and IPM adjustments for precision control. In Mode 4, this tool is equipped with Auto Shut-off Mode in forward and Bolt Removal Mode in reverse. Auto Shut-off Mode will prevent over-tightening of bolts by applying no more than 15ft-lbs. of torque. Bolt removal mode delivers more control as RPMs drastically slow down once the bolt is loosened. The REDLINK PLUS™ Intelligence ensures users achieve maximum performance and protects the tool against overloads, over-heating, and over-discharge. The M12™ REDLITHIUM™ Battery Packs are compatible with all M12™ tools, delivering more work per charge and more work over the life of the pack.

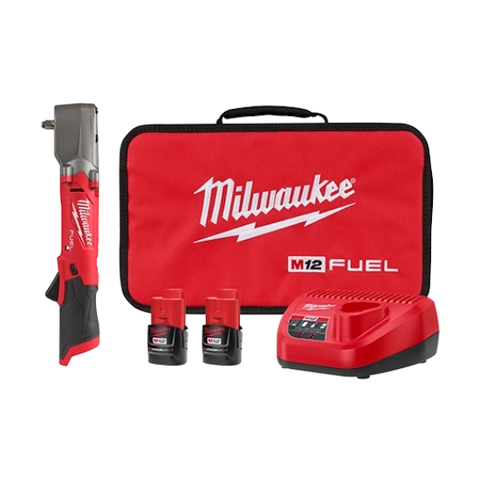

INCLUDES

(1) M12 FUEL™ 3/8" Right Angle Impact Wrench (2564-20)
(2) M12™ REDLITHIUM™ CP2.0 Battery Pack (48-11-2420)
(1) M12™ Charger (48-59-2401)
(1) Contractor Bag

KEY FEATURES

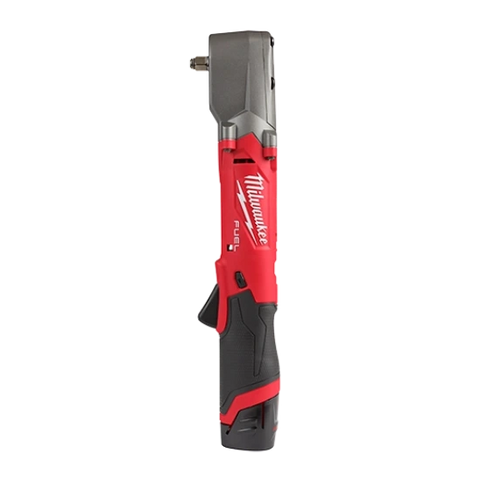

Milwaukee 2564-20 M12 FUEL™ 3/8" Right Angle Impact Wrench

POWERSTATE Brushless Motor delivers up to 220 ft-lbs. of nut-busting torque, making it the most powerful cordless right angle impact wrench on the market
A 2.2" head profile design allows for more access in tight spaces
Mode 1 RPMs: 0-1,550; Mode 2 RPMs: 0-2,300; Mode 3 RPMs: 0-3,000; Mode 4 RPMs: 0-3,000
Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft-lbs. of torque.
Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.
Mode 1 IPMs: 0-1,350; Mode 2 IPMs: 0-2,700; - Mode 3 IPMs: 0-3,600; Mode 4 IPMs: 0-3,600
The long body profile of 14.17" allows for more access in hard to reach spaces
Designed with an impact mechanism that prevents kick-back
LED light to illuminate the work area
Premium rubber overmold withstands corrosive materials and provides increased comfort when in use

PRODUCT SPECIFICATIONS

Wrench Type: Right Angle

Anvil Type: Friction Ring

IPM: 0 - 3,600 ipm

Maximum Torque: 220 ft-lbs

Fastening Torque: 200 ft-lbs

Head Profile: 2.2"

Nut-Busting Torque: 220 ft-lbs

Tool Warranty: 5 Year Limited Warranty

Power Source: Cordless

Motor Type: POWERSTATE™ Brushless

Length: 13.32 in

Weight: 2.82 lbs

Height: 2.81 in

Width: 2.32 in

Voltage: 12V

Brushless: Yes

Battery System: M12

Chuck Type: Not Applicable

Chuck Size: Not Applicable

DRIVE CONTROL: 4-Mode Drive Control

Maximum RPM: 3000 rpm

RPM Range: 0 - 3,000 rpm
