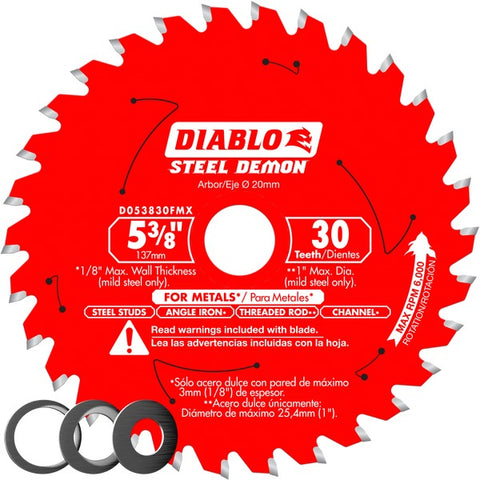

Diablo D053830FMX 5‑3/8 in. x 30 Tooth Steel Demon Carbide-Tipped Saw Blade for Metal

Diablo’s Steel Demon metal cutting saw blades produce fast, accurate cuts in a wide-range of mild steels. These blades feature Diablo made TiCo Hi-Density Carbide engineered exclusively to deliver maximum performance, superior quality cuts and longer life when compared to standard grinding discs. Designed with a Triple Chip Grind (TCG) and Perma-SHIELD® coating, these blades slice through the toughest of metals to produce precise, burr-free cuts with less sparks. A controlled cutting action produces larger chip sizes that generates less dust and airborne contaminates. The thin kerf body minimizes material removal and requires less cutting power, delivering fast, clean cuts in cordless and corded trim saws.
Steel Studs, Angle Iron*, Flat Bar*, Channel*, EMT Conduit, All-thread** Note: *Mild Steel only - 1/8" max. wall thickness **Mild steel only - 1" max diameter
Metal Cutting

SPECIFICATIONS

Arbor: 20mm
Diameter: 5-3/8"
Hook Angle: 2°
Kerf: .059"
Plate: .039"
Max RPM: 6000
Teeth: 30 TCG

FEATURES

Diablo made TiCo Hi-Density Carbide specifically designed for mild steel applications to provide maximum performance, superior cuts, and longer life vs. standard grinding discs.

Triple Chip Cutting action reduces sparks and the possibility of needing “hot” permits

Optimized blade design reduces wandering and deflection of metal, creating precise cuts that require virtually no re-work

Advanced Laser Cut Stabilizer Vents trap noise and vibration for maximum stability, keeping the blade cool for straight, accurate cuts

Tri-Metal Shock Resistant Brazing, a three-metal brazing system, allows Cermet II teeth to withstand extreme impact for maximum durability

Laser Cut Thin Kerf Design provides less resistance and heat build-up for ease of cut, accuracy, and long cutting life in cordless or corded saws

Perma-SHIELD® coating resists heat build-up by protecting the blade against gumming and corrosion

Laser Cut Arbor reduces vibration and premature wear for accurate blade rotation when in use

Circular saw blades create a controlled cutting action resulting in larger chip sizes that generates less dust and airborne contaminates versus standard grinding discs

Ideal for mild steels with 1/8” maximum wall thickness: steel studs, angle iron, channel, flat bar, EMT conduit

Ideal for mild steels, such as threaded rod, with 1” maximum diameter

Optimized for 1/2", 5/8”, 10mm and 20mm corded and cordless trim saws

Compatible with: Milwaukee (20mm & 10mm arbors), Bosch (20mm arbor), Panasonic (20mm arbor), Makita (5/8” arbor), Skil (5/8” & 1/2" arbor) and DeWalt (10mm arbor)

Max RPM: 6000
