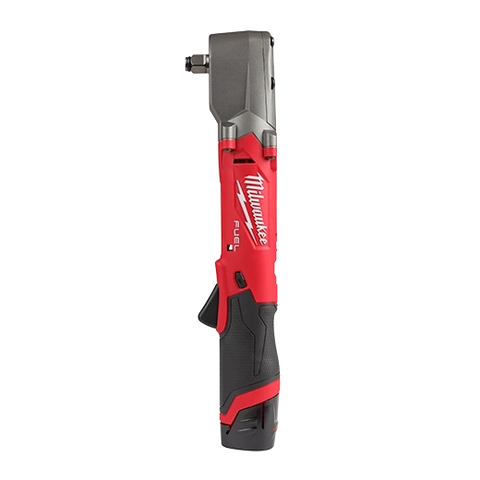

Milwaukee 2565-22 M12 FUEL™ 1/2" Ratchet Impact Wrench Kit

Our M12 FUEL™ 1/2" Right Angle Impact Wrench w/ Friction Ring is the industry's most powerful right angle impact wrench. You’ll be able to easily remove stubborn bolts and fasteners with up to 220 ft-lbs. of nut-busting torque without kickback. This cordless right angle impact wrench also gives you maximum access with ultimate control in hard to reach applications. Our durable cordless impact wrench easily fits into tighter spaces than traditional pistol-grip impact wrenches with a profile head of only 2.2”.This allows you to be more productive by decreasing your need for socket extensions often used with pistol-grip impact tools. The 4-Mode Drive Control delivers unmatched control in various fastening and bolt removal applications. Modes 1-3 provide RPM and IPM adjustments for maximum precision, and Mode 4 is equipped with Auto Shut-off in forward and Bolt Removal Mode in reverse. Our Auto Shut-off Mode will prevent over-tightening of bolts by applying no more than 15 ft-lbs. of torque. Bolt Removal Mode provides more control by drastically slowing down RPMs once the bolt is loosened. The REDLINK PLUS™ Intelligence ensures you achieve maximum performance and protection against overloads, over-heating, and over-discharge. This cordless 1/2” impact wrench is powered by MILWAUKEE® M12™ REDLITHIUM™ Battery Packs (not included), which are compatible with all M12™ tools, delivering more work per charge and more work over the life of the pack.

INCLUDES

(1) M12 FUEL™ 1/2" Right Angle Impact Wrench w/ Friction Ring (Bare Tool) (2565-20)

(2) M12™ REDLITHIUM™ CP2.0 Battery (48-11-2420)

(1) M12™ Lithium-ion Battery Charger (48-59-2401)

(1) Contractor Bag

KEY FEATURES

Milwaukee 2565-20 M12 FUEL™ 1/2" Ratchet Impact Wrench (Tool Only)

POWERSTATE™ Brushless Motor delivers up to 220 ft-lbs. of nut-busting torque, making it the most powerful cordless right angle impact wrench on the market
A 2.2" head profile design allows for more access in tight spaces
Mode 1 RPMs: 0-1,550; Mode 2 RPMs: 0-2,300; Mode 3 RPMs: 0-3,000; Mode 4 RPMs: 0-3,000
Mode 1 IPMs: 0-1,350; Mode 2 IPMs: 0-2,700; - Mode 3 IPMs: 0-3,600; Mode 4 IPMs: 0-3,600
Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft-lbs. of torque.
Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.
The long body profile of 14.17" allows for more access in hard to reach spaces
REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
Designed with an impact mechanism that prevents kick-back
LED light to illuminate the work area

PRODUCT SPECIFICATIONS

Wrench Type: Right Angle

Anvil Type: Friction Ring

IPM: 0 - 3,600 ipm

Maximum Torque: 220 ft-lbs

Fastening Torque: 200 ft-lbs

Head Profile: 2.2"

Nut-Busting Torque: 220 ft-lbs

Tool Warranty: 5 Year Limited Warranty

Power Source: Cordless

Motor Type: POWERSTATE™ Brushless

Length: 13.28 in

Weight: 2.82 lbs

Height: 2.98 in

Width: 2.32 in

Voltage: 12V

Brushless: Yes

Battery System: M12

Chuck Type: Not Applicable

Chuck Size: Not Applicable

DRIVE CONTROL: 4-Mode Drive Control

Maximum RPM: 3000 rpm

RPM Range: 0 - 3,000 rpm
