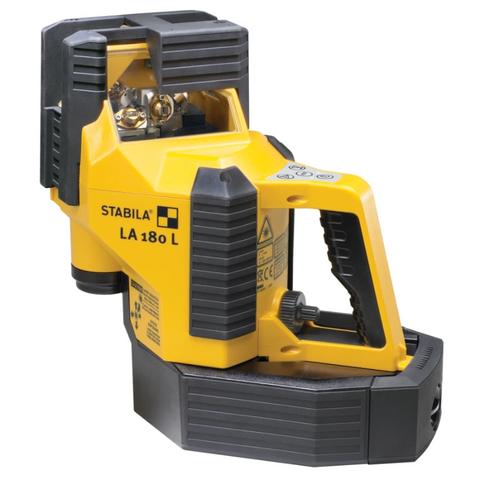

Stabila 02180 LA180L Laser Kit

LA 180L Layout Station with Auto Alignment

Use the Layout Station for laying out to 300ft Cut your labor costs by 50% .

Fully automatic, long range layout. Auto alignment allows you to layout square with only one person in just seconds. Layout over ranges above 50ft is a time-consuming and high risk job. When layout errors occur high follow-up costs will be the result. The LA 180 L self-leveling multi-line laser allows you to layout greater than 20ft up to 300ft fast and accurately. The REC 410 Line RF receiver controls the LA 180 L using the STABILA wireless AUTO ALIGNMENT technology. One press of a button and the laser adjusts automatically to the position of the receiver.

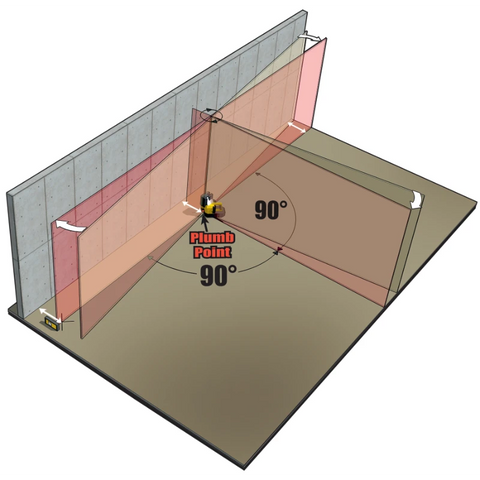

AUTO ALIGNMENT: fully automatic transfer of axes and creation of right angles.

Functional housing shape – positioning in room corners and over edges (e.g. concrete slab).

Applications

This is a fast and precise layout tool. It is designed for applications >20ft up to 300ft.

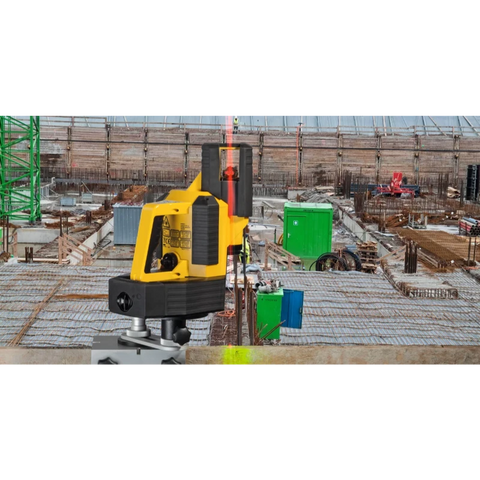

Commercial construction, HVAC, masonry, concrete and top end landscape jobs.

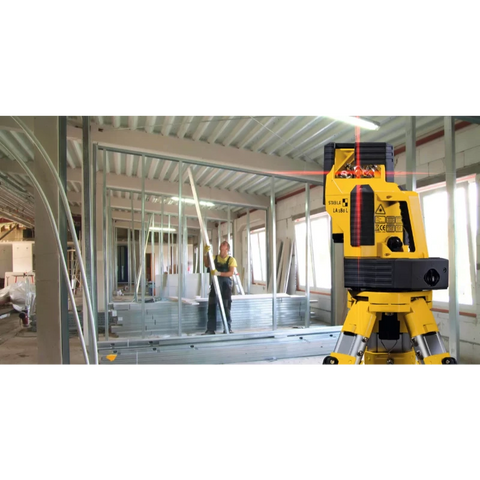

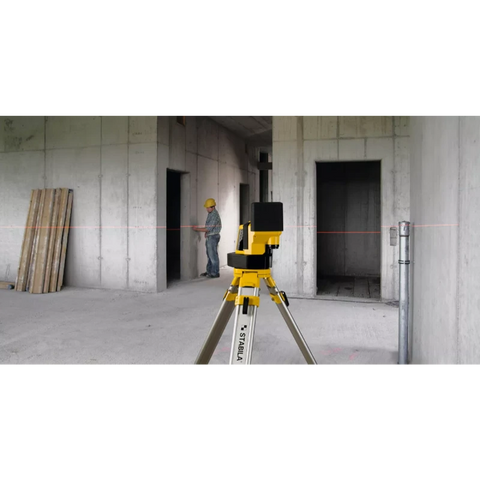

Drywall construction – suspending ceilings, positioning interior and partition walls within a range of 300ft.

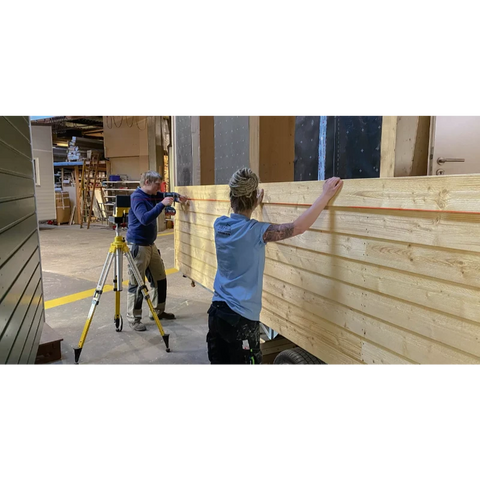

Framing - layout wall positions at the push of a button. Quickly establish square, even when the slab or foundation you're working on is out of square.

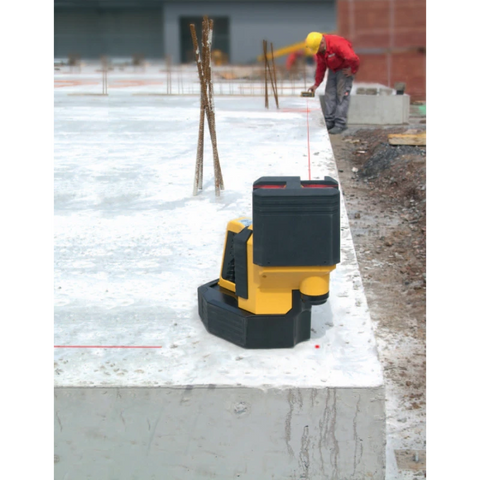

Concrete – Layout forms perfectly straight and square.
Optional laser and receiver mounts available for most re-usable forming systems.

Technical data

Laser class: 2
Output: < 1 mW
Laser wavelength: 635 nm
Self-levelling range +/-: 5°
Levelling accuracy +/-: 3/32 in @ 100 ft
Line straightness +/-: 1/8 in @ 100 ft
Laser beam accuracy (down) +/-: 3/32 in @ 100 ft
Measuring range of set receiver: 328 ft
Measuring range of visible point: 65 ft
Measuring range of visible line: 65 ft
Operating life: 20 h
Protection class: IP 54
Tripod connection: 5/8"-11
